某中学7层框架辅助教学楼结构设计（计算书+图纸）[面积9540]

毕设基本摘要

内容摘要
本设计主要进行了结构方案中横向框架A，B，C，D轴框架的设计。在确定框架布局之后，先计算了恒载，活载，风载的等效荷载以及各杆端的内力，然后用分层法进行内力分配，然后各层叠加，进而求出在水平荷载作用下的结构内力（弯矩、剪力、轴力）。接着内力组合找出最不利的一组或几组内力组合。 选取最安全的结果计算配筋并绘图。还进行地基设计。此外还进行了结构方案中的楼梯的设计。完成了平台板，梯段板，平台梁等构件的内力和配筋计算及施工图绘制。
关键词： 框架    结构设计    内力组合

Abstract
The purpose of the design is to do the anti-seismic design in the longitudinal frames of axis A，B，C，D，E，F. When the directions of the frames is determined, firstly the weight of each floor is calculated .Then the vibrate cycle is calculated by utilizing the peak-displacement method, then making the amount of the horizontal seismic force can be got by way of the bottom-shear force method. The seismic force can be assigned according to the shearing stiffness of the frames of the different axis. Then the internal force in the structure under the horizontal loads can be easily calculated. After the determination of the internal force under the dead and live loads, the combination of internal force can be made by using the Excel software, whose purpose is to find one or several sets of the most adverse internal force of the wall limbs and the coterminous girders, which will be the basis of protracting the reinforcing drawings of the components. The design of the stairs is also be approached by calculating the internal force and reinforcing such components as landing slab, step board and landing girder whose shop drawings are completed in the end.
Keywords :  frames,  structural design,  Combine inside the dint

建筑面积：9540m²
建筑层数：7层
建筑高度：26.1m
结构类型：框架结构
文件内容：计算书+图纸

计算书部分内容展示
毕业设计计算书.pdf (4.59 MB, 下载次数: 0, 售价: 10 积分)

2015-12-4 14:04 上传

点击文件名下载附件

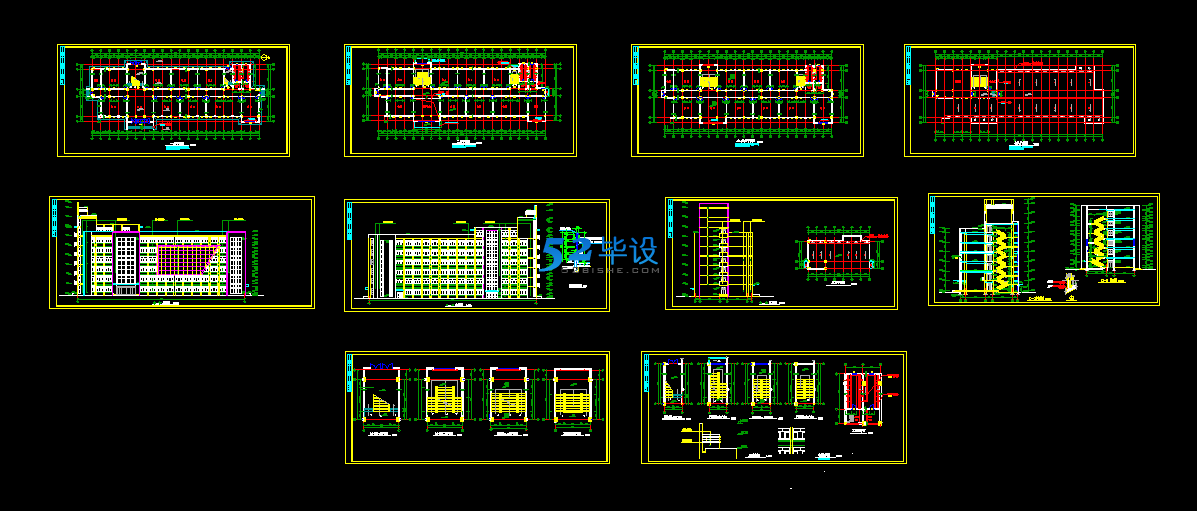

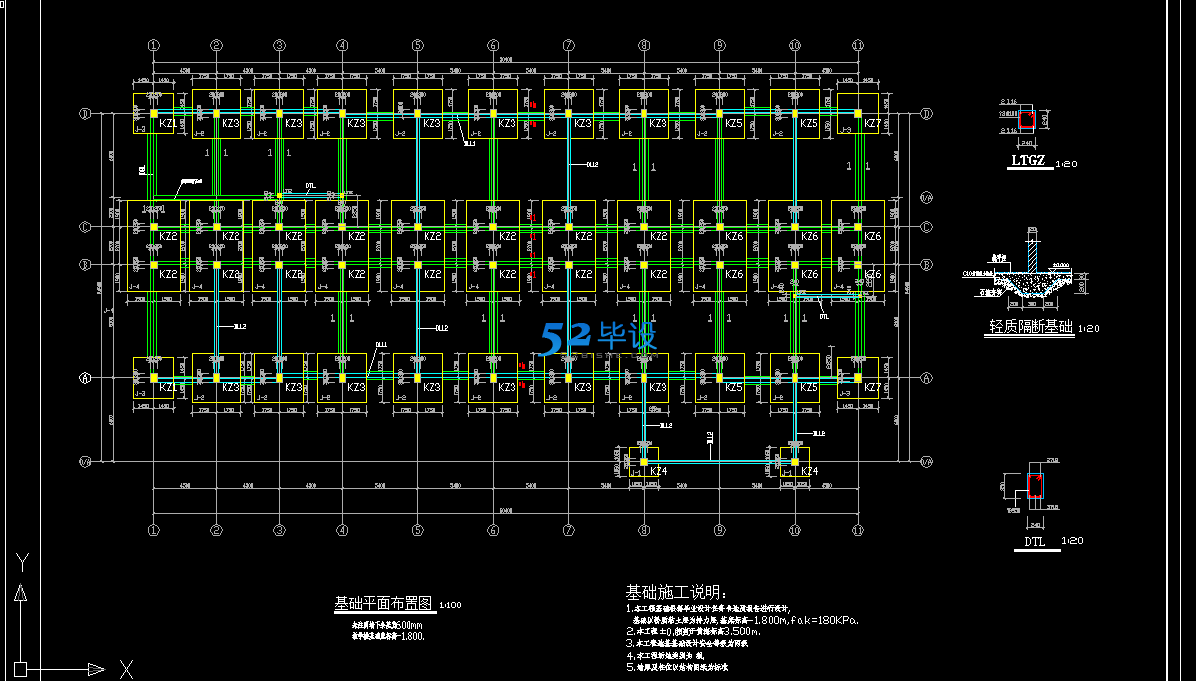

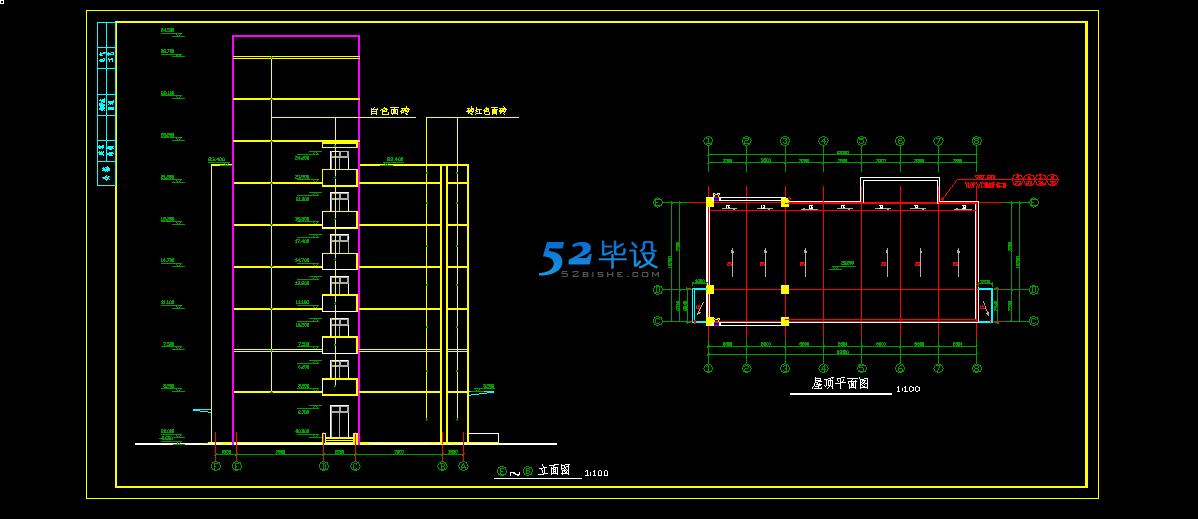

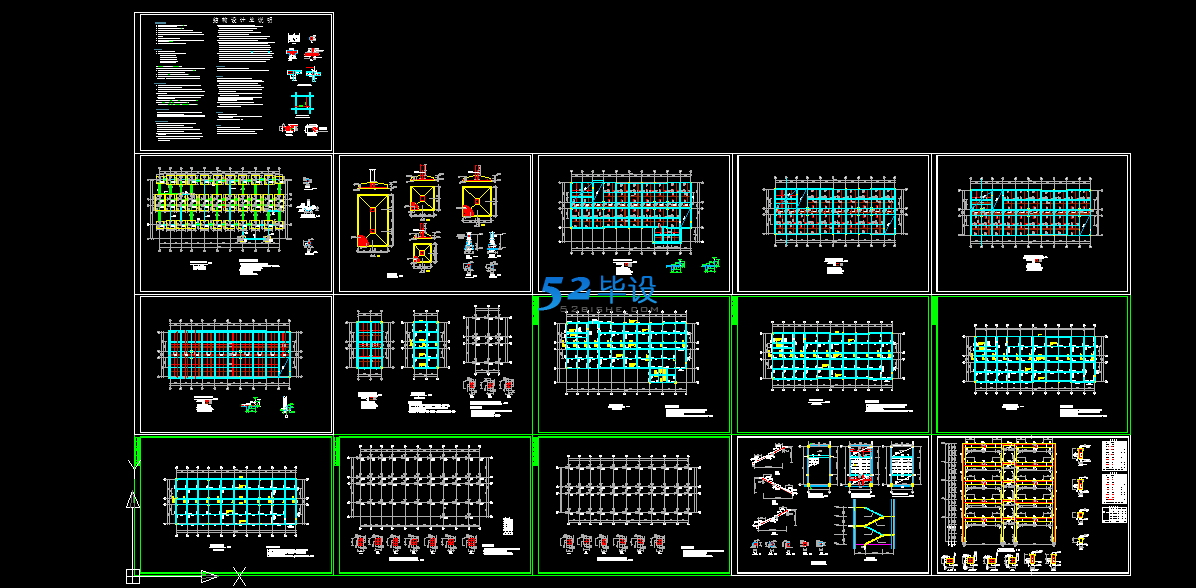

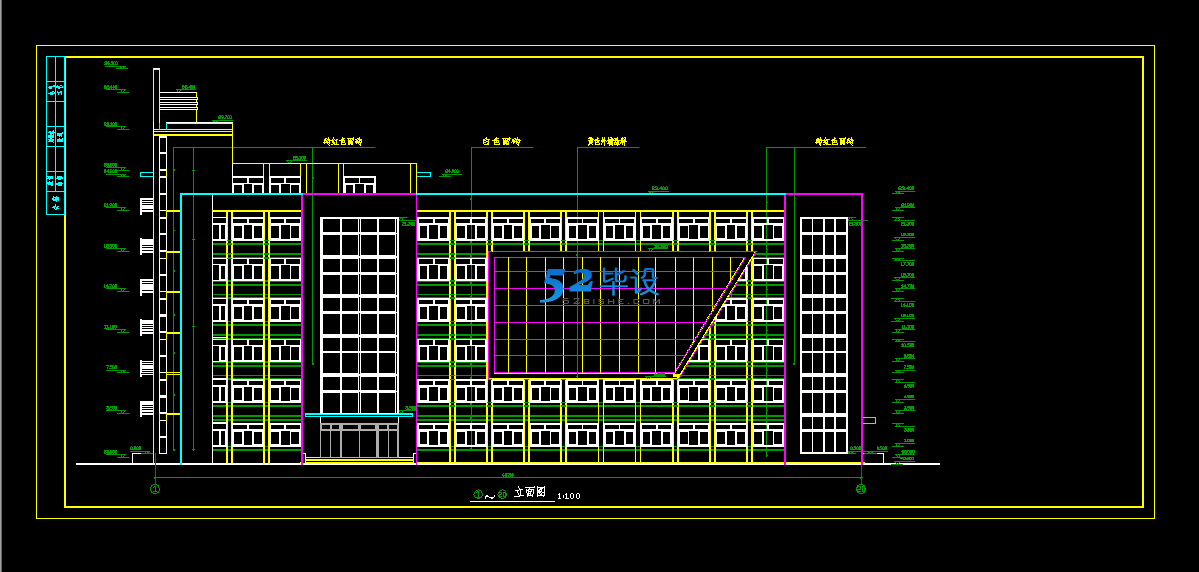

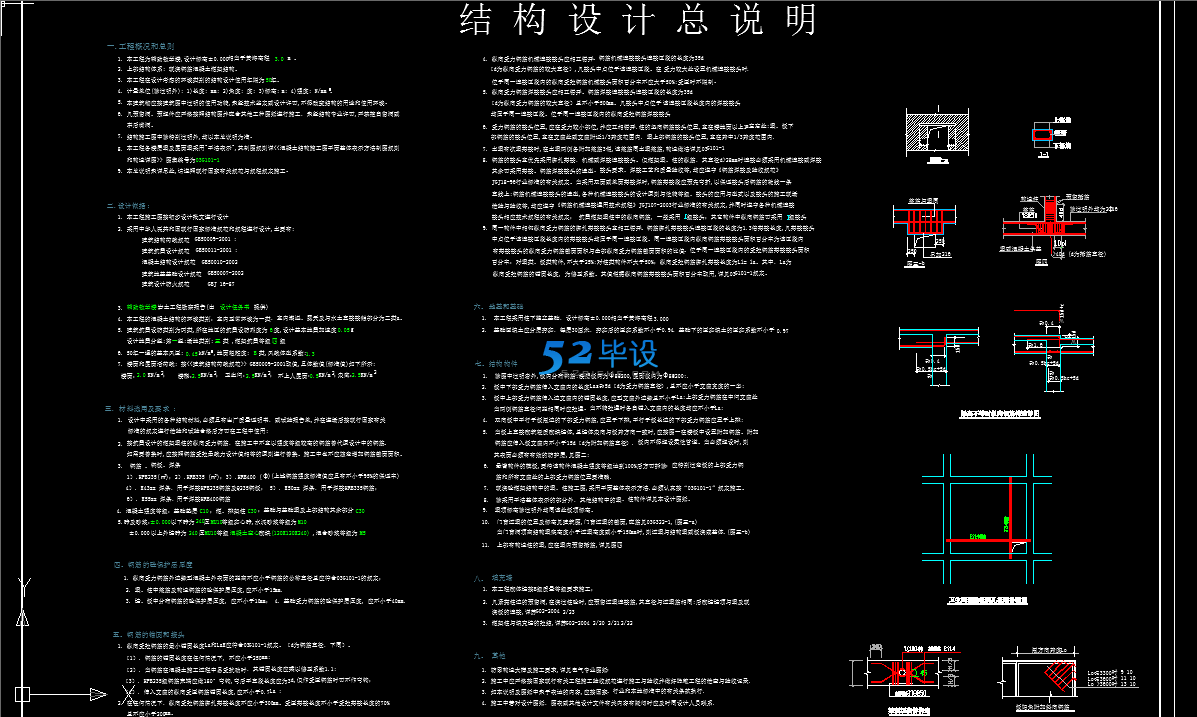

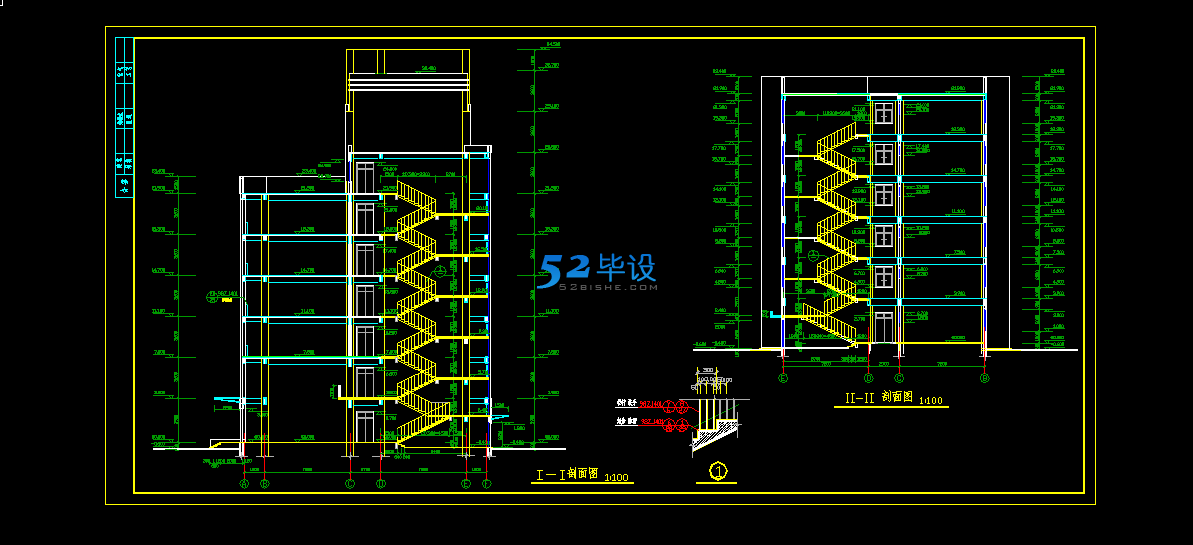

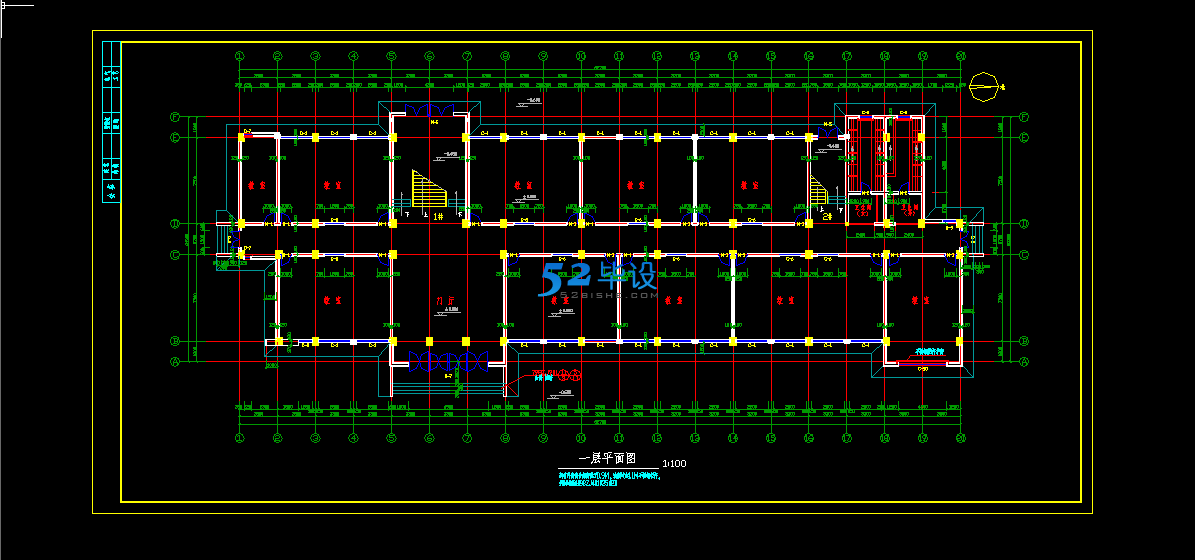

部分图纸截图

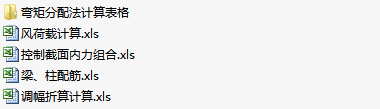

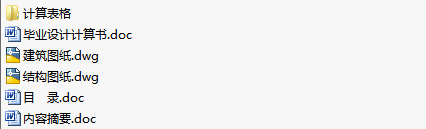

文件列表截图




全套毕设下载
