    9层框架结构住宅楼建筑结构毕业设计(计算书+图纸)[面积3600]

    资料分类:土木工程设计资料 - 建筑结构毕业设计范文参考资料 | 发布形式:资料共享 | 更新时间:2017-06-25 显示全部楼层

    建筑/结构设计_9层框架结构住宅楼
    9层框架结构住宅楼

    资料分类:建筑/结构设计

    资料格式:DWG DOC

    软件支持:CAD2007以上 Word2007以上

    发布形式:资料共享

    文件内容:建筑图纸+结构图纸+结构计算书

    DOC文档文件为doc格式,用WORD打开
    DWG图纸文件为dwg格式,用CAD打开

    资料介绍

    资料简介:

      摘要;本专业设计是点式小高层住宅楼设计.有建筑设计和结构设计施工组织设计三部分组成.结构设计是本专业设计的重点,其主要有结构设计说明书,结构施工图两部分组成.结构设计主要是竖向荷载作用下的框架计算和水平荷载作用下的地震作用计算,内力组合,梁柱配筋,楼梯计算,基础计算.竖向荷载作用下的框架计算.本设计取一榀框架,九层,三跨.采用弯矩分配法逐层求得.水平抗震计算:主要由D值法求得.求出上述内力后,即可进行内力组合.然后进行梁柱的配筋.最后进行基础设计.
      DIGEST,This graduction project is a design of a concrete frame building.It includes three parts: architecture design and structural design. The architecturedesign is mainly illustrated in architecture drawing according to code, Structural design is key skill for a engineering graduate and it is made of structural calculation and structural working drawing.Design of structurate is made up of a frame calculation under vertical loads. anti-selsimil calculation under horizonatal loads internat farces constitate disposing steel bar for beams and column stair calculation .foundation calculation .The frame calculation under vertical loads . In this parts the frame is irregular . 9 storys and 1 pum .To solve the problems the separate-layers methed and  distribution of moment methed are used.In horizontal anti-seismmie calculation used D value methed.After finishing the calculation of intered forces .disposed steel bar in beams and columns .Finally , Foundation design is made according to the geology piled footing is used.
    设计正文的部分内容试读已结束,如果需要查看完整设计内容,请下载本资料
    /
    图纸的部分内容截图展示已结束,如果需要查看完整图纸内容,请下载本资料

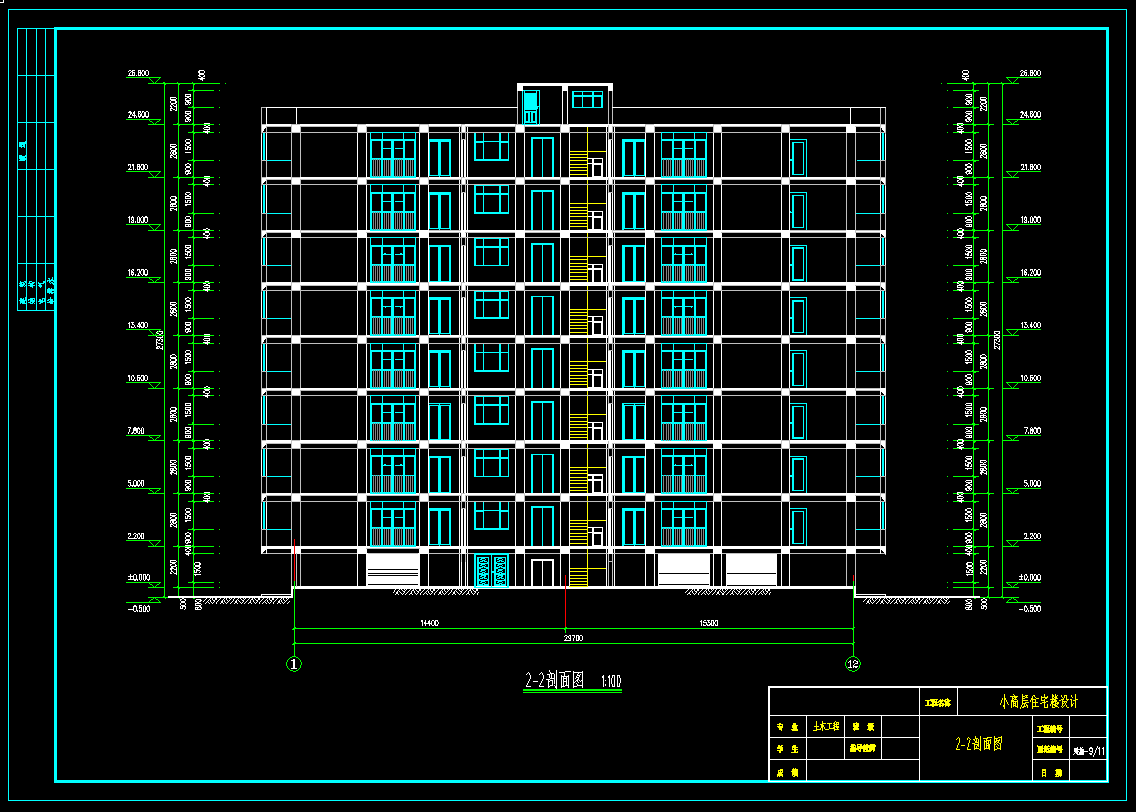

    建筑结构毕业设计-9层框架结构住宅楼建筑结构毕业设计(计算书+图纸)[面积3600](20)

    在线内容试读展示已结束,下载资料使用学习更方便
