某中学5层宿舍楼建筑结构设计（计算书+图纸）[面积4022]

资料分类：土木工程毕业设计 - 建筑结构毕业设计 | 发布形式：资料共享 | 更新时间：2015-10-29 显示全部楼层

毕设基本摘要

建筑面积：4022m²
建筑层数：5层
建筑高度：21.3m
结构类型：框架结构
文件内容：计算书+图纸

中学学生宿舍结构设计

［摘要］本工程为天水市某中学宿舍楼设计，其功能是为学校学生提供住所。本工程为多层现浇钢筋混凝土框架结构，共五层，底层层高3.3米，其他层层高均为3.3米，建筑物总高度为21.3米，总建筑面积为4022.15平方米。4人间设计，有独立的卫生间和阳台，能满足440人入住。

本设计书包括如下部分：
1．工程概况；
2．楼盖设计；
3．荷载计算；
4．框架结构的受力分析、计算和设计；
5．桩基础设计。

［关键词］钢筋混凝土，框架，结构设计

Middle school student's dormitory structural designe

[Abstract] This is a student's dormitory of a middle school in the tianshui newly developed area. Its function is provides the residence for the school student. It is a multi-layer reinforced concrete frame. It has five stories, the height of the first storey is 3.3 meters, and the height of other stories are all 3.3 meters. The height of the whole building is 18.5 meters. The total floor space is 4022.15 square meters. One room can live four students, has the independence the bathroom and the balcony. Altogether can live 440 people.

This paper includes the following parts:
1. The survey of the program.
2. The design of the floor slab.
3. The calculation of the load.
4.The mechanical analysis，calculation and design of the frame.
5. The design of the pile base.

[Keywords] Reinforced concrete, frame, the design of the structure

计算书部分内容展示

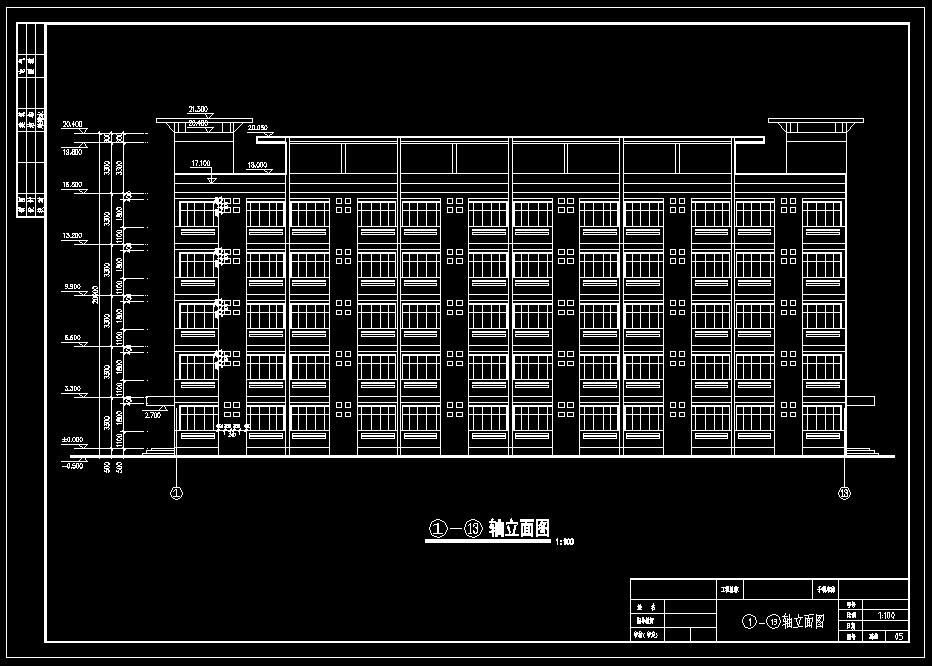

部分图纸截图
